Large Metal Cutting Equipment

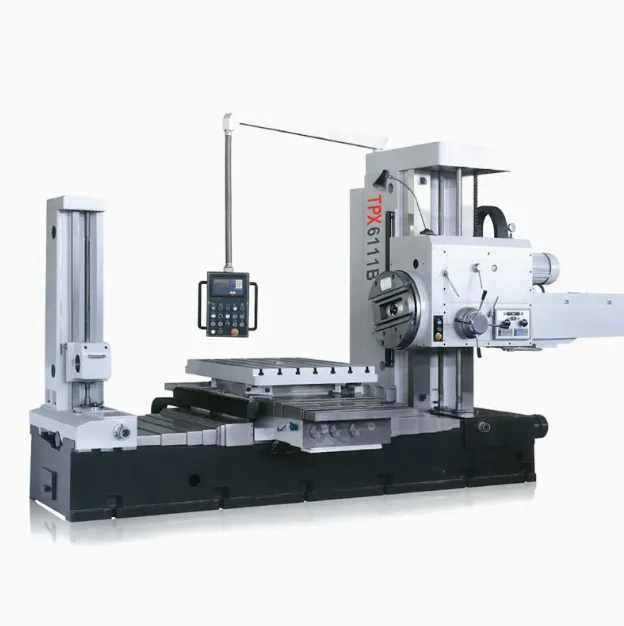

TPX6111B Digital Display Horizontal Boring and Milling Machine
数字显示卧式镗铣床TPX6111B
Overview
Digital display horizontal boring and milling machine for large box-type and structural parts.
This model is part of Changyi's Large Metal Cutting Equipment lineup for buyers comparing Chinese CNC machine tools, technical parameters and export-ready quotation options. Applications
Applications
Heavy workpieces, Gantry machining, Boring and milling
Technical Parameters
Technical Parameters
All equipment can be customized; inquiries and discussions are welcome.
Model NO.
TPX6111B
Structure
Horizontal Boring Machine
Coordinate Boring Machine Type
Horizontal Type
Tool Type
Fine Knife/Crude Knife
Controlling Mode
CNC
Precision
High Precision
Automatic Grade
Automatic
Certification
CE, ISO 9001
Condition
New
Spindle Diameter
110mm/130mm
Spindle Taper
Morse 6 （ISO 7:24 No50）
Transverse Travel of Worktablel-X
900mm~2000mm
Headbox Travel-Y Axis
1000mm~1800mm
Table Horizontal Travel-Z Axis
1000mm~2000mm
Spindle Speed Level
22
Slide
Speed Number of Radial Facing 18
Max. Torque of Spindle
1225n.M
Max.Torque of Facing Slide
12250n
Pindle.Headstock / Rapid Traverse Speed of / 2500mm/Min / Worktable Rotation Angle
360°
Main Motor Power
7.5kw
Worktable Size
960mm*1100mm
Max.Permissible Load of Table
2500kg
Weight
13000kg
Transport Package
Wooden Packing
