Overview

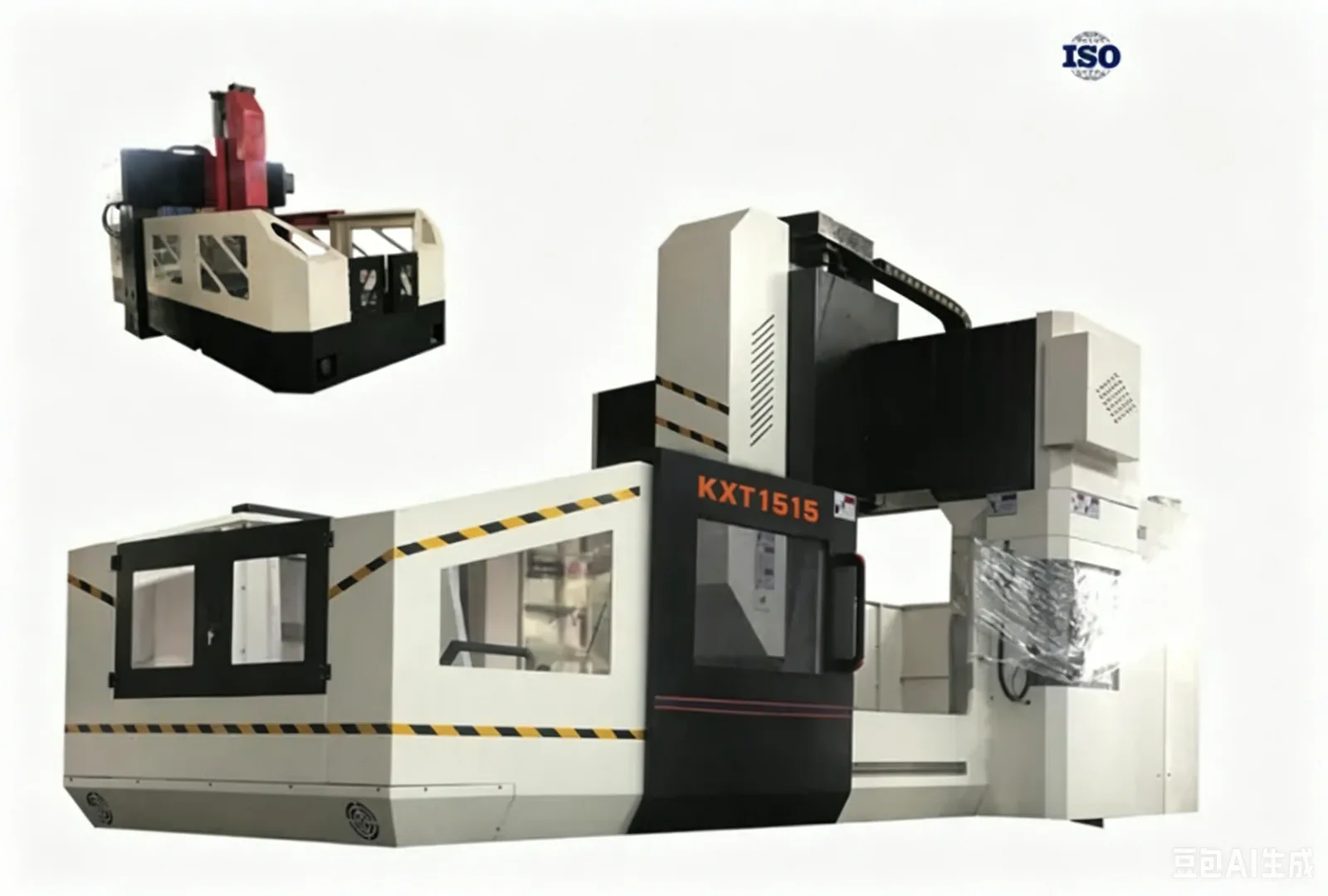

Five-axis gantry machining center for complex large workpieces and multi-surface machining.
This model is part of Changyi's Large Metal Cutting Equipment lineup for buyers comparing Chinese CNC machine tools, technical parameters and export-ready quotation options. Applications
Applications
Heavy workpieces, Gantry machining, Boring and milling
Technical Parameters
Technical Parameters
All equipment can be customized; inquiries and discussions are welcome.
Model NO.
KXT 1515
Type
Gantry Milling Machine
Object
Thread
Structure
Gantry
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Device Name
Gantry Milling Machine
X Axis
1500mm
Y AXIS
1500mm
Z Axis
600mm
Gantry Span
1500mm
Distance From Spindle Nose to
150-750mm
Table Size
1200*1500mm
Table Load
3000kg
Spindle Speed
3, 000（6,000-0pt.）
Spindle Taper
Bt-50 / ISO-50/ Cat-50
Rapid Traverse（X/Y/Z）
10/10/7m/Min
Ball Screw Diameter（X/Y/Z）
50/50/50mm
Product Videos
KXT1515 video 1Media
Inquiry
Send an inquiry: KXT1515
Please include product model, workpiece information, destination country and required delivery schedule.
