Overview
Four-axis CNC gear hobbing machine for precision machining of cylindrical gears and transmission components.

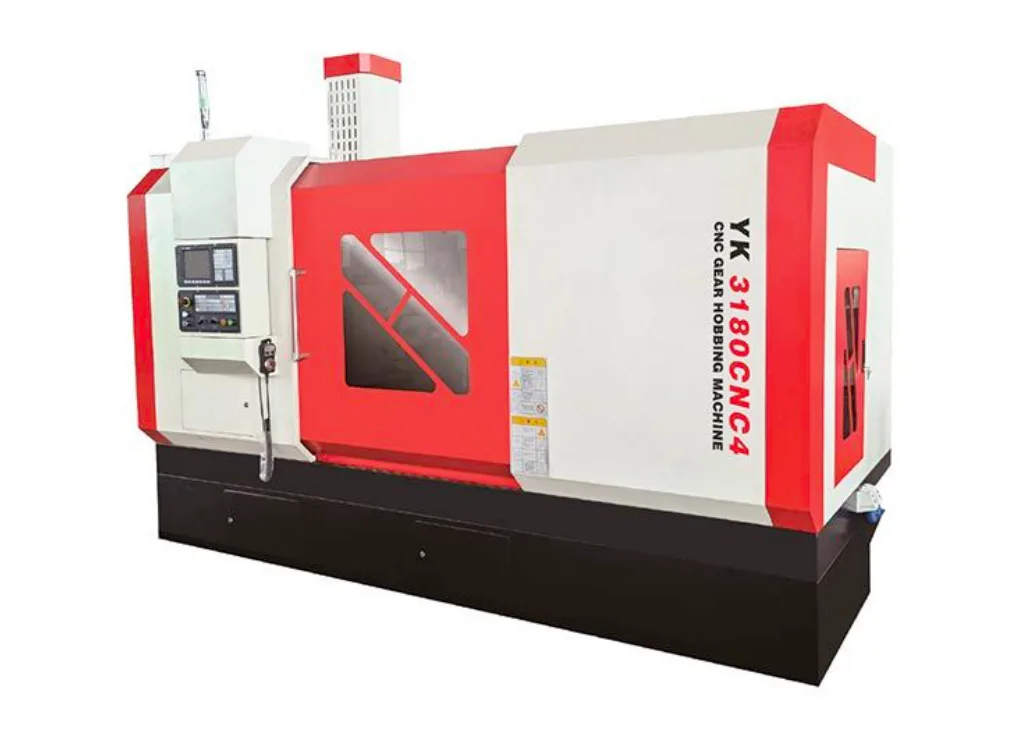

The YK3180CNC4 is a fully enclosed CNC gear hobbing solution with a 650 mm worktable, designed for stable and repeatable production of gears and related transmission parts.
Applications
Used for producing spur gears, helical gears and other cylindrical gear components for industrial transmissions.
Technical Parameters
Technical Parameters
All equipment can be customized; inquiries and discussions are welcome.
Model
YK3180CNC4
Control Axes
Four-axis CNC
Maximum Machining Diameter
550 mm with rear column / 800 mm without rear column
Maximum Processing Width
300 mm
Minimum Gear Teeth
As required
Maximum Vertical Stroke of Tool Rest
350 mm
Gear Cutter Arbor Diameter
Phi22 / Phi27 / Phi32 / Phi40 mm
Worktable Diameter
650 mm
Axial Feed Range
Stepless 0.4-4 mm/r
Machine Weight
7500 kg
Hydraulic Pump Motor
1.5 kW, 1400 r/min
Machine Dimensions
3920 x 2380 x 2770 mm
Product Videos
YK3180 CNC Gear Hobbing MachineMedia
